Plug and unplug the charging cable Renault Zoe

How to charge

Unlock your car before charging the car

1. Open the charge door at the front of the car;

2. Take out the vehicle's charging cable;

3. Remove the charging handle's protective cover;

4. Plug the cable in the charging socket

;

5. Select wich charging point (1 or 2) you use on the charging station;

6. The charging cable handle will lock and charging will begin within 5 seconds. The logo ZE will flash blue if the charging process has been done correctly;

7. Check the dashboard

that the vehicle is charging;

Note: Some charging station need the Diego badge before starting the charge. If you cannot charge your vehicle please check this.

How to unplug the charging cable

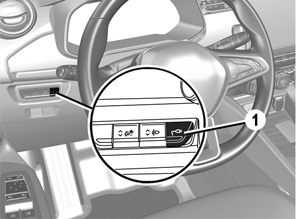

1. Go inside the car and press the button on the left, next to the steering wheel;

2. Unplug the charging cable handle from its charging socket;

3. Put back the protectives covers and close the charge door;

Please don't forget to put back the charging cable in its storage compartment if it comes from the vehicle.
